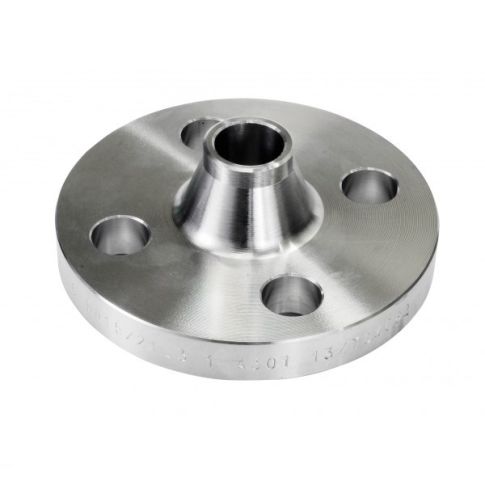

Weld neck flange DIN2633

Material: 1.4404

Grouped product items
Weld Neck Flange DIN2633 Form C PN16 DN20/26,9 x 2,3 3489	Qty 0 Pc. in stock Out of stock	£26.69 £22.43
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN20 Range ISO (Range 1) d126.9 D105 b16 k75 h138 d340 s2.3 r4 h26 d458 f2 Quantity4 ThreadM12 d214		Scaled Prices From 2 Pc. £23.95 £20.13 -10 % From 35 Pc. £22.10 £18.57 -17 % From 68 Pc. £21.18 £17.80 -21 % From 104 Pc. £20.24 £17.01 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN25/33,7 x 2,6 3488	Qty 0 Pc. in stock Out of stock	£22.50 £18.91
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN25 Range ISO (Range 1) d133.7 D115 b16 k85 h138 d345 s2.6 r4 h26 d468 f2 Quantity4 ThreadM12 d214		Scaled Prices From 2 Pc. £20.19 £16.97 -10 % From 42 Pc. £18.62 £15.65 -17 % From 81 Pc. £17.86 £15.01 -21 % From 123 Pc. £17.08 £14.35 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN32/42,4 x 2,6 3490	Qty 0 Pc. in stock Out of stock	£43.01 £36.14
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN32 Range ISO (Range 1) d142.4 D140 b16 k100 h140 d356 s2.6 r6 h26 d478 f2 Quantity4 ThreadM16 d218		Scaled Prices From 2 Pc. £38.53 £32.38 -10 % From 22 Pc. £35.57 £29.89 -17 % From 42 Pc. £34.12 £28.67 -21 % From 65 Pc. £32.63 £27.42 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN40/48,3 x 2,6 3491	Qty 0 Pc. in stock Out of stock	£35.99 £30.24
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN40 Range ISO (Range 1) d148.3 D150 b16 k110 h142 d364 s2.6 r6 h27 d488 f3 Quantity4 ThreadM16 d218		Scaled Prices From 2 Pc. £32.24 £27.09 -10 % From 26 Pc. £29.77 £25.02 -17 % From 50 Pc. £28.55 £23.99 -21 % From 77 Pc. £27.33 £22.97 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN50/57 x 3,0 26898	Qty 0 Pc. in stock Out of stock	£56.19 £47.22
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN50/57 x 3,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £50.37 £42.33 -10 % From 17 Pc. £46.52 £39.09 -17 % From 32 Pc. £44.55 £37.44 -21 % From 49 Pc. £42.64 £35.83 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN50/57 x 3,0 79818	Qty 59 Pc. in stock Out of stock	£58.57 £49.22
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN50/57 x 3,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £52.50 £44.12 -10 % From 16 Pc. £48.49 £40.75 -17 % From 31 Pc. £46.46 £39.04 -21 % From 47 Pc. £44.41 £37.32 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN50/60,3 x 2,9 28633	Out of stock	£57.68 £48.47
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN50 Range ISO (Range 1) d160.3 D165 b18 k125 h145 d375 s2.9 r6 h28 d4102 f3 Quantity4 ThreadM16 d218		Scaled Prices From 2 Pc. £51.69 £43.44 -10 % From 16 Pc. £47.77 £40.14 -17 % From 31 Pc. £45.76 £38.45 -21 % From 48 Pc. £43.78 £36.79 -24 %
Weld Neck Flange DIN2633 Form C-4 Loch PN16 DN65/70 x 2,0 26899	Qty 0 Pc. in stock Out of stock	£61.42 £51.61
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN65/70 x 2,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £55.05 £46.26 -10 % From 15 Pc. £50.82 £42.71 -17 % From 30 Pc. £48.72 £40.94 -21 % From 45 Pc. £46.58 £39.14 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN80/88,9 x 3,2 28634	Qty 869 Pc. in stock Out of stock	£89.79 £75.45
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN80 Range ISO (Range 1) d188.9 D200 b20 k160 h150 d3105 s3.2 r8 h210 d4138 f3 Quantity8 ThreadM16 d218		Scaled Prices From 2 Pc. £80.50 £67.65 -10 % From 11 Pc. £74.29 £62.43 -17 % From 20 Pc. £71.20 £59.83 -21 % From 31 Pc. £68.13 £57.25 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN100/104 x 2,0 26903	Qty 0 Pc. in stock Out of stock	£87.48 £73.51
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN100/104 x 2,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £78.41 £65.89 -10 % From 11 Pc. £72.39 £60.83 -17 % From 21 Pc. £69.38 £58.30 -21 % From 32 Pc. £66.35 £55.76 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN100/114,3 x 3,6 3481	Qty 0 Pc. in stock Out of stock	£159.25 £133.82
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN100 Range ISO (Range 1) d1114.3 D220 b20 k180 h152 d3131 s3.6 r8 h212 d4158 f3 Quantity8 ThreadM16 d218		Scaled Prices From 2 Pc. £142.79 £119.99 -10 % From 6 Pc. £131.80 £110.76 -17 % From 11 Pc. £126.31 £106.14 -21 % From 17 Pc. £120.81 £101.52 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN125/139,7 x 4,0 28636	Qty 86 Pc. in stock Out of stock	£147.82 £124.22
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN125 Range ISO (Range 1) d1139.7 D250 b22 k210 h155 d3156 s4 r8 h212 d4188 f3 Quantity8 ThreadM16 d218		Scaled Prices From 2 Pc. £132.53 £111.37 -10 % From 6 Pc. £122.33 £102.80 -17 % From 12 Pc. £117.25 £98.53 -21 % From 19 Pc. £112.16 £94.25 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN150/154 x 2,0 26905	Qty 0 Pc. in stock Out of stock	£151.77 £127.54
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN150/154 x 2,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £136.08 £114.35 -10 % From 6 Pc. £125.60 £105.55 -17 % From 12 Pc. £120.38 £101.16 -21 % From 18 Pc. £115.16 £96.77 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN150/156 x 3,0 26906	Qty 0 Pc. in stock Out of stock	£173.70 £145.97
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN150/156 x 3,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £155.72 £130.86 -10 % From 5 Pc. £143.74 £120.79 -17 % From 10 Pc. £137.75 £115.76 -21 % From 16 Pc. £131.79 £110.75 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN150/159 x 4,5 26907	Qty 0 Pc. in stock Out of stock	£191.01 £160.51
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN150 Range DIN (Range 2) d1159 D285 b22 k240 h155 d3175 s4.5 r10 h212 d4212 f3 Quantity8 ThreadM20 d222		Scaled Prices From 2 Pc. £171.24 £143.90 -10 % From 5 Pc. £158.08 £132.84 -17 % From 10 Pc. £151.48 £127.29 -21 % From 15 Pc. £144.92 £121.78 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN150/154 x 2,0 93666	Qty 15 Pc. in stock Out of stock	£173.70 £145.97
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN150/154 x 2,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £155.72 £130.86 -10 % From 5 Pc. £143.74 £120.79 -17 % From 10 Pc. £137.75 £115.76 -21 % From 16 Pc. £131.79 £110.75 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN150/168,3 x 4,5 28637	Qty 185 Pc. in stock Out of stock	£175.39 £147.39
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN150 Range ISO (Range 1) d1168.3 D285 b22 k240 h155 d3184 s4.5 r10 h212 d4212 f3 Quantity8 ThreadM20 d222		Scaled Prices From 2 Pc. £157.27 £132.16 -10 % From 5 Pc. £145.16 £121.98 -17 % From 10 Pc. £139.11 £116.90 -21 % From 16 Pc. £133.08 £111.83 -24 %
Weld Neck Flange DIN2633 Form C PN16 DN200/206 x 3,0 24966	Qty 0 Pc. in stock Out of stock	£259.98 £218.47
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN200/206 x 3,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £233.09 £195.87 -10 % From 4 Pc. £215.14 £180.79 -17 % From 7 Pc. £206.19 £173.27 -21 % From 11 Pc. £197.23 £165.74 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN250/273 x 6,3 26914	Qty 20 Pc. in stock Out of stock	£399.88 £336.03
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN250 Range ISO (Range 1) d1273 D405 b26 k355 h170 d3292 s6.3 r12 h216 d4320 f3 Quantity12 ThreadM24 d226		Scaled Prices From 2 Pc. £358.51 £301.27 -10 % From 3 Pc. £330.94 £278.10 -17 % From 4 Pc. £317.15 £266.51 -21 % From 5 Pc. £303.34 £254.91 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN300/306 x 3,0 44061	Qty -5 Pc. in stock Out of stock	£394.31 £331.35
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DNDN300/306 x 3,0 Range d1 D b k h1 d3 s r h2 d4 f Quantity Thread d2		Scaled Prices From 2 Pc. £353.48 £297.04 -10 % From 3 Pc. £326.33 £274.23 -17 % From 4 Pc. £312.71 £262.78 -21 % From 5 Pc. £299.09 £251.34 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN300/323,9 x 7,1 26920	Qty 8 Pc. in stock Out of stock	£534.50 £449.16
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN300 Range ISO (Range 1) d1323.9 D460 b28 k410 h178 d3344 s7.1 r12 h216 d4378 f4 Quantity12 ThreadM24 d226		Scaled Prices From 2 Pc. £479.19 £402.68 -10 % From 3 Pc. £442.31 £371.69 -17 % From 4 Pc. £423.91 £356.23 -21 % From 5 Pc. £405.49 £340.75 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN350/355,6 x 8,0 78431	Qty 0 Pc. in stock Out of stock	£793.29 £666.63
Dimension Types of Contact FacesForm C, Raised Face Rz = 160 (40µm and more), mechanical turned Contact Face According to DIN EN 1092-1Form B1, Raised Face Pressure Nominal PN 16 DN350 Range ISO (Range 1) d1355.6 D520 b30 k470 h182 d3390 s8 r12 h216 d4438 f4 Quantity16 ThreadM24 d226		Scaled Prices From 2 Pc. £711.23 £597.67 -10 % From 3 Pc. £656.51 £551.69 -17 % From 4 Pc. £629.18 £528.72 -21 % From 5 Pc. £601.79 £505.71 -24 %
Weld neck flange EN 1092-1 Typ 11 / DIN2633 Form B1/C PN16 DN400/406,4 x 8,0 28225	Qty 0 Pc. in stock Out of stock	£994.04 £835.33
		Scaled Prices From 2 Pc. £891.23 £748.93 -10 % From 3 Pc. £822.66 £691.31 -17 % From 4 Pc. £788.38 £662.50 -21 % From 5 Pc. £754.09 £633.69 -24 %
